HI1004
HI1004

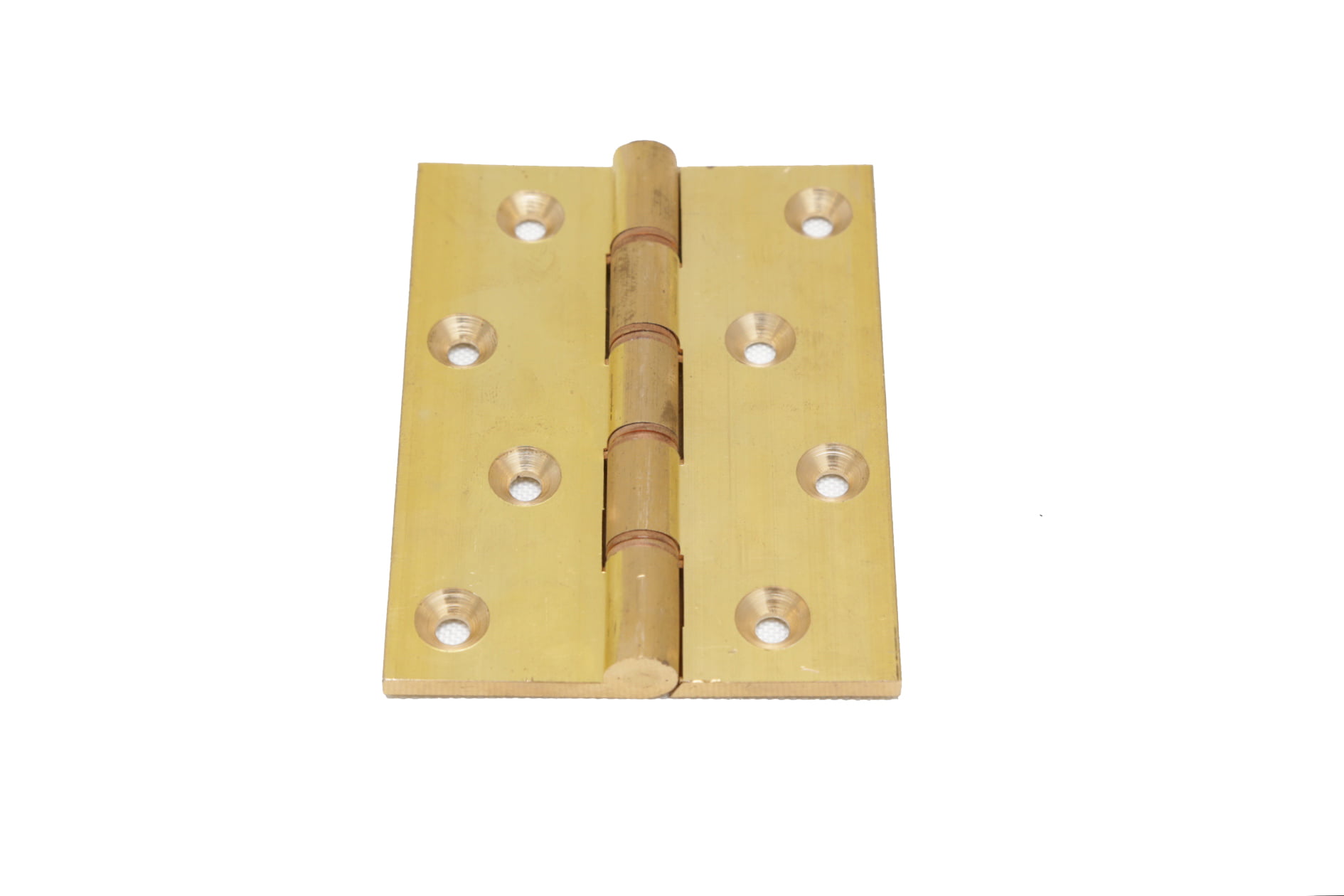

Phosphor Bronze Washered Hinge
| Height | 100mm | 100mm | 125mm | 150mm |
| Width | 65mm | 75mm | 75mm | 75mm |
| Knuckle Diameter | 9.2mm | 11mm | 11mm | 11mm |
| Leaf Thickness | 3.5mm | 4mm | 4mm | 4mm |
| Load Capacity (3 Hinges) | 40Kg | 40Kg | 40Kg | 40Kg |
Projection Variant
| Height | 100mm | 125mm | 150mm | 125mm | 150mm |
| Width | 100mm | 100mm | 100mm | 125mm | 125mm |
| Knuckle Diameter | 11mm | 11mm | 11mm | 12.7mm | 12.7mm |
| Leaf Thickness | 4mm | 4mm | 4mm | 5mm | 5mm |
| Load Capacity (3 Hinges) | 40Kg | 40Kg | 40Kg | 40Kg | 40Kg |
| Amount of Projection | 50mm | 50mm | 50mm | 68mm | 68mm |
CE marked versions available and are fire rated up to 30 minutes.
All Beardmore finishes available.
Polished Brass
Finish type:
A solid brass surface hand-polished to a mirror finish and protected with a lacquer. Suitable for internal or external use, but will naturally tarnish over time.
Care and maintenance:
Items finished in Polished Brass should be maintained using a soft, damp cloth.
PB Unlacquered
Finish type:
A solid brass surface hand-polished to a mirror finish which is suitable for internal or external use.
Care and maintenance:
Polished Brass Unlacquered items can be left to develop their own natural patina or otherwise maintained using a metal polish / brass cloth.
Flash Gold
Finish type:
Flash Gold is hand-applied, tint-lacquered finish to a polished brass surface.
Care and maintenance:
Items finished in Flash Gold should be maintained using a non-abrasive, damp cloth.
Satin Brass
Finish type:
Satin Brass is a hand-applied finish to a brushed brass base which is finished with a satin lacquer. The finished product can tone and naturally tarnish further with time.
Care and maintenance:
Items finished in Satin Brass should be maintained using a soft, damp cloth.
Distressed Gold
Finish type:
Distressed Gold is a hand-applied heat finish to a polished brass surface, which is aged and tint-lacquered and is best suited to an internal environment.
Care and maintenance:
Items finished in Distressed Gold should be maintained using a non-abrasive, damp cloth.
Polished Chrome
Finish type:
Polished Chrome is a hardwearing electroplated finish applied to a polished brass base, suitable for internal or external use.
Care and maintenance:
Items finished in Polished Chrome should be maintained by wiping with a soft, damp, non-abrasive cloth.
Polished Nickel
Finish type:
Polished Nickel is an electroplated finish applied to a polished brass base. This is traditionally an unlacquered finish which is left to develop its own natural patina.
Care and maintenance:
Items finished in Polished Nickel should be maintained by wiping with a soft, damp, non-abrasive cloth.
Antque Silver
Finish type:
Antique Silver is an electroplated finish applied to a polished brass base, which is then antiqued and hand-relieved to achieve the desired appearance. The finished product is unlacquered and left to patinate further.Â
Care and maintenance:
Items finished in Antique Silver should be maintained by lightly wiping with a non-abrasive cloth.
Satin Nickel
Finish type:
Satin Nickel is an electroplated finish applied to a brushed brass base. This is traditionally an unlacquered finish which is left to develop its own natural patina.Â
Care and maintenance:
Items finished in Satin Nickel should be maintained by wiping with a soft, damp, non-abrasive cloth.
Burnished Bronze
Finish type:
Burnished Bronze is a hand-applied finish to a specially prepared brass base which is finished with a satin lacquer. The finished product can tone and naturally tarnish further with time.
Care and maintenance:
Items finished in Burnished Bronze should be maintained using a soft, damp cloth.
Imperial Copper
Finish type:
Imperial Copper is a hand-aged and relieved finish to a specially prepared brass base which is finished with a tint lacquer. Some tarnishing may occur with time.
Care and maintenance:
Items finished in Imperial Copper should be maintained using a soft, damp cloth.
Matt Bronze
Finish type:
Matt Bronze is a hand-applied finish to a specially prepared brass base which is finished with a satin lacquer. The finished product can tone and naturally tarnish further with time.
Care and maintenance:
Items finished in Matt Bronze should be maintained using a soft, damp cloth.
Black Bronze
Finish type:
Black Bronze is a hand-applied finish to a specially prepared brass base which is finished with a satin lacquer. The finished product can tone and naturally tarnish further with time.
Care and maintenance:
Items finished in Black Bronze should be maintained using a soft, damp cloth.
Pewter
Finish type:
Pewter is an electroplated finish applied to a specially prepared brass base. Pewter-finished items are supplied as standard with a protective lacquer.
Care and maintenance:
Items finished in Pewter should be maintained by wiping with a soft, damp, non-abrasive cloth.
Antique Brass
Finish type:
Antique Brass is a hand-applied finish to a specially prepared brass base which is finished with a satin lacquer. The finished product can tone and naturally tarnish further with time.
Care and maintenance:
Items finished in Antique Brass should be maintained using a soft, damp cloth.
Distressed Brass
Finish type:
Distressed Brass is an electroplated finish applied to a polished brass base, which is then antiqued and hand-relieved to achieve the desired appearance. The finished product is unlacquered and left to patinate further.
Care and maintenance:
Items finished in Distressed Brass should be maintained by lightly wiping with a non-abrasive cloth.
Tempus Brass
Finish type:
Tempus Brass is a hand-patinated heat finish to a polished brass surface which is lightly brushed prior to marine grade lacquering. Some tarnishing may occur with time. This finish is suitable for internal or external use.
Care and maintenance:
Items finished in Tempus Brass should be maintained using a non-abrasive, damp cloth.
Aged Brass
Finish Type:
Aged Brass is a hand-applied finish to a brushed brass base which is finished with a satin lacquer. The finished product can tone and naturally tarnish further with time.
Care and maintenance:
Items finished in Aged Brass should be maintained using a soft, damp cloth.
Hampstead Brass
Finish type:
Hampstead Brass is a hand-patinated heat finish to a polished brass surface which is lightly brushed prior to marine grade lacquering. Some tarnishing may occur with time. This finish is suitable for internal or external use.
Care and maintenance: Items finished in Hampstead Brass should be maintained using a non-abrasive, damp cloth.
Copper Bronze
Finish type:
Copper Bronze is an electroplated finish applied to a specially prepared brass base which is then antiqued and tint lacquered. Some tarnishing will occur with time.
Care and maintenance:
Items finished in Copper Bronze should be maintained using a soft, damp cloth.
Antique Copper
Finish type:
Antique Copper is an electroplated finish applied to a polished brass base, which is then antiqued and hand-relieved to achieve the desired appearance. The finished product is unlacquered and left to patinate further.
Care and maintenance: Items finished in Antique Copper should be maintained by lightly wiping with a non-abrasive cloth.
Apithe
Finish type:
Apithe is a hand-applied finish to a polished brass surface which is antiqued prior to marine grade lacquering. Some tarnishing may occur with time. This finish is suitable for internal or external use.
Care and maintenance:
Items finished in Apithe should be maintained using a non-abrasive, damp cloth.
Care of Finishes
PRODUCTS FITTED INTERNALLY
Regular cleaning with warm soapy water should be sufficient to keep any finish in its original condition for a long period. The occasional use of a good quality wax polish is also recommended.
PLATED FINISHES
Will also benefit from the occasional use of chrome cleaner, followed by a wipe with a cloth impregnated with light oil.
RMBA & RUSTIC BRONZE
Will benefit from the occasional wipe with a cloth impregnated with light oil.
PRODUCTS FITTED EXTERNALLY
Environmental conditions can have a dramatic effect on the stability of surface finishes. Industrial pollution, high humidity, sea air and acidic rain may well cause a finish to deteriorate prematurely. Regular cleaning with good quality wax polish is recommended.
UNLACQUERED BRASSES & BRONZES
To retain the original finish, regular polishing with a good quality metal polish is essential. However, if the intention is to allow the surface to age through oxidisation then no attention needs to be given.
